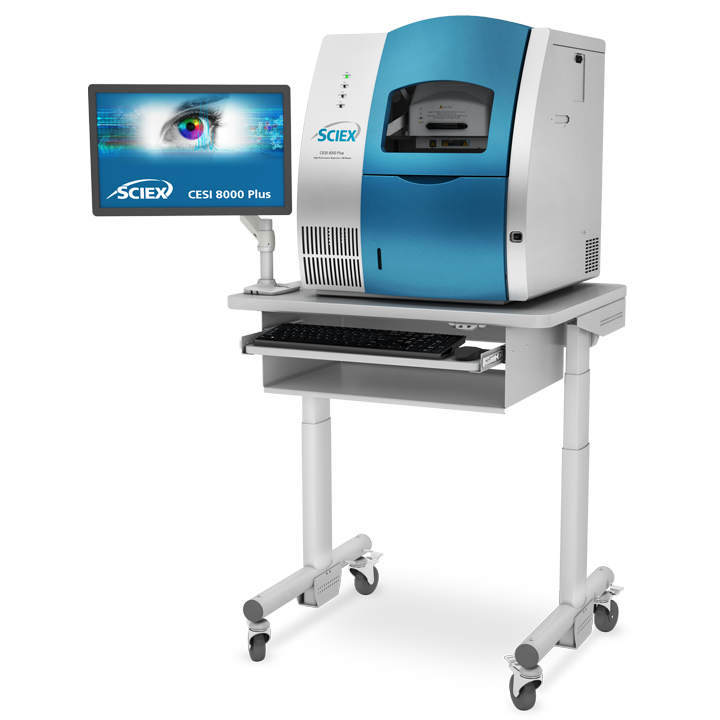

CESI 8000 Plus ESI-MSシステム

見逃していたものが見える

革新的なESI MS法でこれまでにない速さで、そして微量なサンプルからいままでは検出できなかった情報を取得してください。独立型のキャピラリー電気泳動装置として使用する場合でも、質量分析装置と接続して使用​​する場合でも、CESI 8000 Plusを使用するとテクノロジーではなくサイエンスをよりフォーカスできます。サンプルを取得するために一生懸命取り組んできたその貴重な作業の成果を最大限に獲得してください。以前は見逃していた隠された情報をぜひ取得してください。

  • オンラインMS検出によるインタクトmAbの電荷不均一性
  • プロテオフォーム、および複数部位のリン酸化を含むペプチド翻訳後修飾
  • イオン性または親水性物質など、荷電した極性代謝物/分解産物
  • 従来の技術では分離できなかったアイソバリックな代謝物および糖鎖
  • 蛋白質医薬品のインタクト解析
MS接続キャピラリー電気泳動ESIシステムCESI 8000 Plus|質量分析計・LC-MS/MSシステムのSCIEX
主な特長

デッドボリューム無し

分離空間は一本の連続したキャピラリーです。カートリッジに組み込まれています。

マルチ検出機能

各種検出器を装備してキャピラリー電気泳動装置(単体)としても使用できます。

  • 波長選択式(UV)ディテクタ
  • フォトダイオードアレイ(PDA)ディテクタ
  • レーザー誘導蛍光(LIF)ディテクタ

マルチインジェクション機能

サンプル量も最少で5μLから

質量分析計の性能を拡張する

キャピラリー電気泳動法とイオン化エレクトロスプレー法を一本のキャピラリーを通して有用かつ使い易い形に統合しました。新たな可能性を獲得できます。

可能性のさらに先へ

CESI 8000 Plus高性能システムは、迅速で効率的かつユニークな分離選択性を高感度で提供すると同時に、適用範囲を拡大させます。

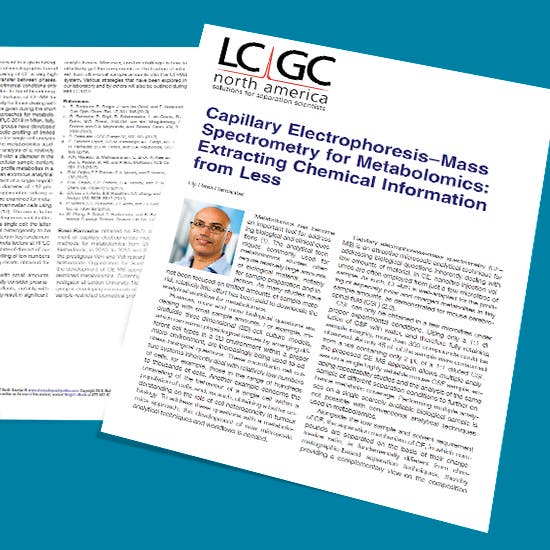

少ないサンプルでより多くの情報を

CE-MSのマイクロスケール分析手法がごく少量のサンプルを扱う生物学的問題に対処するための魅力的なツールである理由をご覧ください。

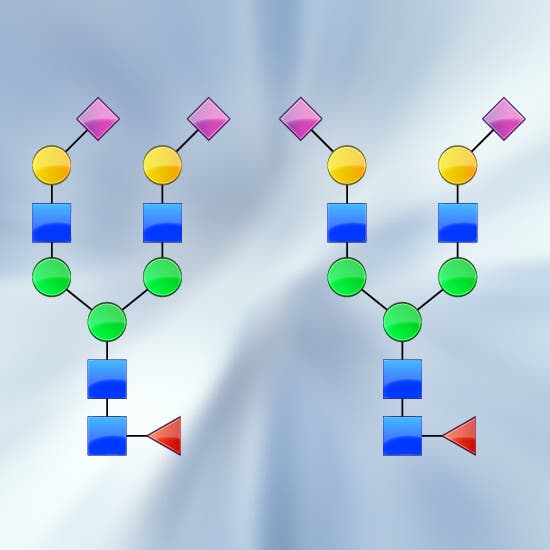

アイソバリック化合物

現行の方法では十分に分離できないアイソバリック化合物の分析を簡略化します。

ネイティブな条件

ネイティブな条件下でのタンパク質およびペプチドの分子相互作用および構造を調べることができます。

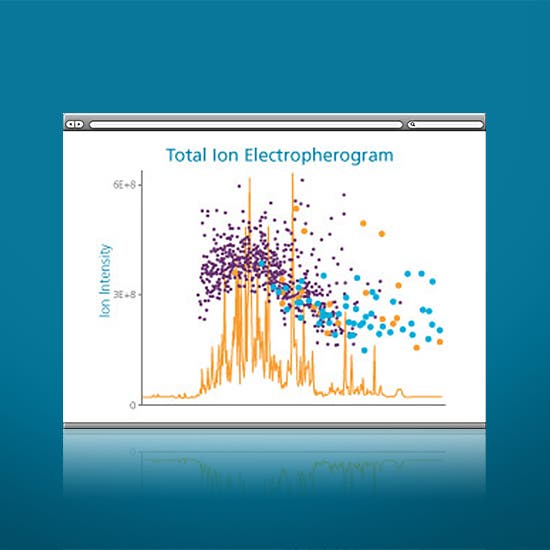

前代未聞の検出力

カバレッジを拡大することで、これまで検出できなかったものを見ることができます。

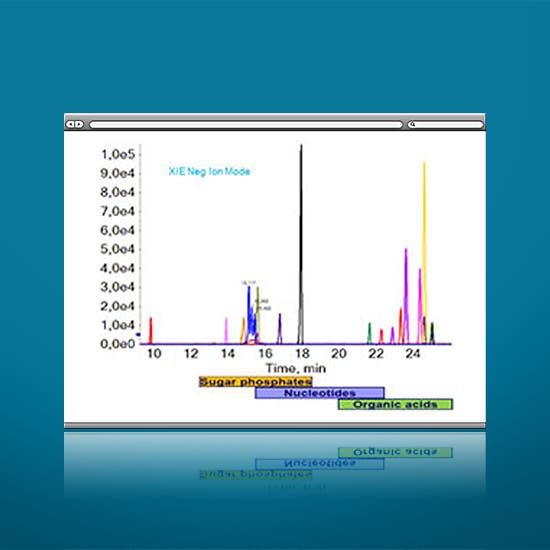

カバレッジの拡大

LCでは困難な、親水性の荷電した極性化合物の同定を行い、メタボロームおよびグリコ―ム分析の感度を向上させます。

新しいPTMの発見

プロテオフォーム、および複数部位のリン酸化およびグリコシル化を含むペプチド翻訳後修飾の、信頼性の高い定量および特性解析

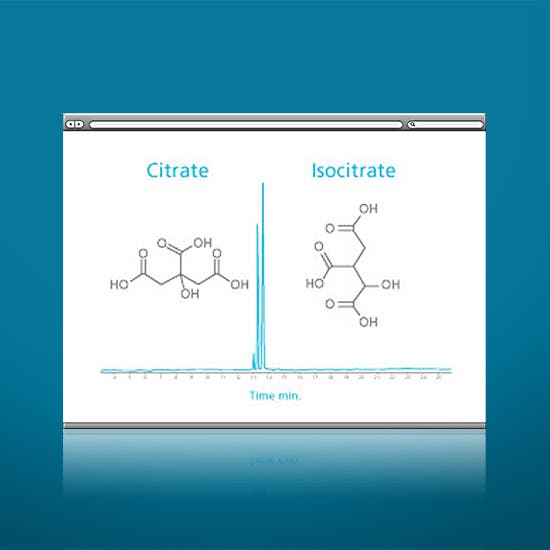

異性体の分離

異性体の分離 – 従来のLC-MS法では不可能です。

よりダイナミックで効率的なプロセス

10nL/min未満という超低流速でも頑健性を示すCESI-MSとして質量分析計とを接続することでイオン化効率が全体的に向上します。

最小限のサンプル消費

苦労して収集したサンプルは入手困難である場合が多く、また出発物質の量が制限される場合もあります。CESI-MSのサンプル消費量はnL単位と少ないため、サンプルの大部分をその他の解析用に保存することができます。

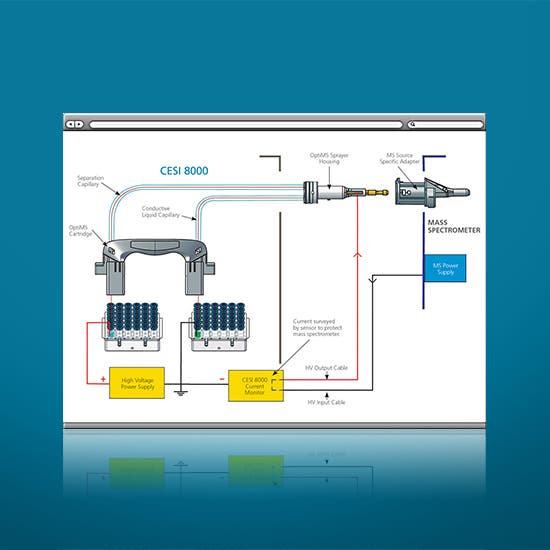

ワークフローの効率化

Use the same method and reagents for multi-level characterization of protein therapeutics. Switch between pos and neg ion modes without changing setup.

イライラから解放されます

1本のオープンチューブ技術によって、ナノスケール技術で起こりやすい多くのイライラの原因を排除しました。デッドボリュームを最小限に抑えるために、またはキャリーオーバーや詰まりに対処するために何時間も費やす必要がなくなります。

主な特長

寸法

 635(W)× 721(D)× 742(H)mm(扉開放時H:986mm)

重量

 85.3kg

電源

100V、8A、50/60H

サンプルトレイ対応試料数

48ポジション

泳動バッファ

36ポジション

キャピラリー加圧制御

- 5 ~ 100psi(- 34 ~ 689kPa)

最小試料溶液量

5 μl when using NanoVias

バイオ医薬品の高分解能分離のための究極のツール

なぜCESI 8000 Plusなのかをご覧ください

07/02/2020

動画の視聴はこちらから >

『SCIEX Empowerドライバー Version1.3』を使ってPA 800 Plusをもっとエンパワー(強化)しませんか?

データインテグリティとコンプライアンス対応を充実させるために、Waters Empower 3 CDS(クロマトグラフィーデータソフトウェア)でPA 800 Plusを制御しませんか? 今回リリースされた『SCIEX EmpowerドライバーVersion1.3』は、規制に対するリスクを軽減するだけではなくメソッドの移管効率も最大化できます。
